drawtiming (Linux-Programm)


Software unter Linux
http://drawtiming.sourceforge.net/usage.html

http://manpages.ubuntu.com/manpages/lucid/man1/drawtiming.1.html

drawtiming --output test.png test.dt


test.dt
# initialize the signals
POWER=0, CS=1, DATA_OUT=Z, CLOCK=0.
# turn on the power
POWER=1.
CS=0.
DATA_OUT=0xA7.
CLOCK=1.
CLOCK=0.
DATA_OUT=0xD3.
CLOCK=1.
CLOCK=0.

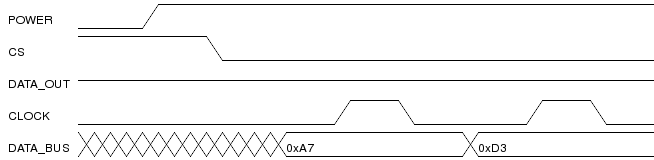

 (image: http://tnotes.de/images/02_test.dt.png)
