Octave-Animationen

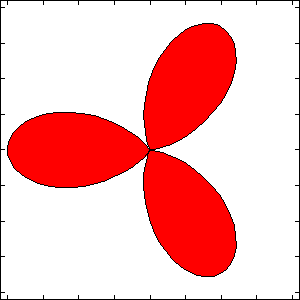

Octave -Plots als Datei speichern und Animationen generieren.
N=20; % Number of frames per animation cycle
M = 3; % Number of arms
e = 2.1; % Plot size
% Delete old graphics
delete("oa_*.gif")
a=linspace(0,2*pi,360/M);
v=0;
b=0;
for k=1:N
% calculate animation
b=b+(2*pi/N/M);
hold off;
r=sin(a*M)+1;
x=sin(a+b).*r;
y=cos(a+b).*r;
% plot figure
fill(x,y,"r");
ylim([-e e])
xlim([-e e])
axis equal;
ax = gca ();
set (ax, "position", [0, 0, 1, 1]); % Set axes equal to figure size
% print figure to file
if k>9
sZero = '';
else
sZero = '0';
end
print(['oa_' sZero num2str(k) '.gif'], "-S300,300")
replot
end
M = 3; % Number of arms
e = 2.1; % Plot size
% Delete old graphics
delete("oa_*.gif")
a=linspace(0,2*pi,360/M);
v=0;
b=0;
for k=1:N
% calculate animation
b=b+(2*pi/N/M);
hold off;
r=sin(a*M)+1;
x=sin(a+b).*r;
y=cos(a+b).*r;
% plot figure
fill(x,y,"r");
ylim([-e e])
xlim([-e e])
axis equal;
ax = gca ();
set (ax, "position", [0, 0, 1, 1]); % Set axes equal to figure size
% print figure to file
if k>9
sZero = '';
else
sZero = '0';
end
print(['oa_' sZero num2str(k) '.gif'], "-S300,300")
replot
end
Das Skript generiert Einzelbilder, die anschließend mit einem Programm, wie z.B. animakedt zusammengeführt werden können.
